    Klip Lok Roof Panel Roll Forming Machine 12-15m/min for Building Material

    Ask Lasest Price
    Brand Name : BMS
    Certification : ISO9001/CE/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50 Set/Sets per Month
    Delivery Time : 45DAYS
    Model Number : Klip Lok Roof
    • Product Details
    • Company Profile

    Klip Lok Roof Panel Roll Forming Machine 12-15m/min for Building Material

    Klip Lok Roof Panel Cold Roll Forming Machine 12-15m/min for Building Material


    The advantages of roof panel machine are as follows:
    1. Able to produce two different profiles.
    2. Save space, more convenient.
    3. Easy operation, low maintenance cost
    4. Stable and durable

    2.Detailed Images of YX62-490 Klip-Lok roof panel forming machine

    Machine Parts
    1) YX62-490 Klip-Lok roof panel machine electronic control cabinet
    Brand: BMS Original: China

    2) YX62-490 Klip-Lok roof panel machine rollers
    Brand: BMS Original: China
    Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
    with black treatment or Hard-Chrome Coating for options.
    With feeding material guide, body frame made from 400# H type steel by welding
    3) YX62-490 Klip-Lok roof panel machine post cutter
    Brand: BMS Original: China
    Made by high-quality mold steel Cr12 with heat treatment
    Cutter frame made from high quality 20mm steel plate by welding
    Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa


    4) YX62-490 Klip-Lok roof panel machine touching screen
    Brand: BMS Original: China
    Easy to operate

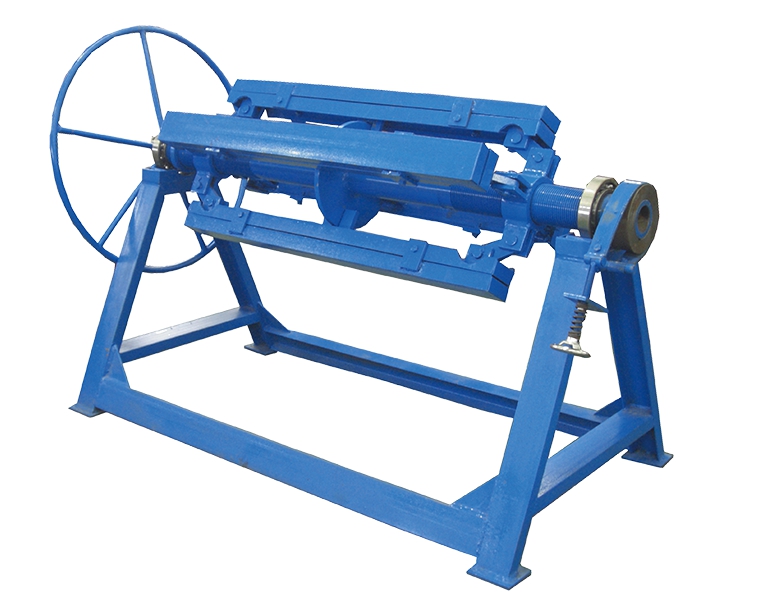

    YX62-490 Klip-Lok roof panel machine decoiler
    Brand: BMS Original: China
    Manual Decoiler: one set
    Un-powered, manually control steel coil inner bore shrinkage and stop
    Max. feeding width: 1250mm, coil ID range 470mm±30mm
    Capacity: Max. 8 Ton


    Un-powered, one unit
