75mm Shutter Door Roll Forming Machine

1. Main features of 75mm Shutter Door Roll Forming Machine

The advantages of Rolling Shutter Roll Forming Machine are as follows:

1. Able to produce slat with 2 types of connection: with a punched hole or punched slot.

2. Save space, more convenient.

3. Easy operation, low maintenance cost

4. Stable and durable

2. Detailed Images of Shutter Door Roll Forming Machine

Machine Parts

1) 75mm Shutter Door Roll Forming Machine Guiding

Brand: BMS Original: China

2) 75mm Shutter Door Roll Forming Machine Rollers

Brand: BMS Original: China

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

With 0.04mm Hard-Chrome Coating for long working life

Body frame made from 200# H type steel by welding

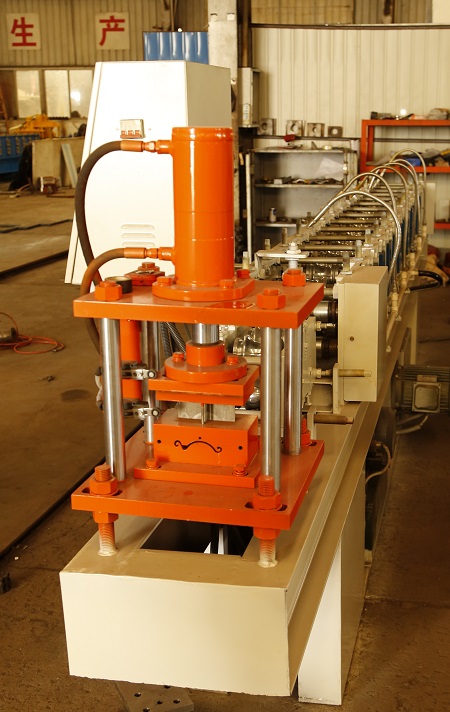

3) 75mm Shutter Door Roll Forming Machine post cutter

Brand: BMS Original: China

Made by high-quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

4)75mm Shutter Door Roll Forming Machine PLC control cabinet

Brand: BMS Original: China

5) 75mm Shutter Door Roll Forming Machine decoiler

Brand: BMS Original: China

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 300 mm, coil ID range 470mm±30mm

Capacity: Max. 1.5 Ton

6) 75mm Shutter Door Roll Forming Machine run out table

Brand: BMS Original: China

Un-powered,3units

Other detailes of 75mm Shutter Door Roll Forming Machine

Suitable for material with thickness 0.6-1.0mm

Shafts manufactured from 45#, Main shaft diameter=φ45mm, precision machined

Motor driving, Gear chain transmission,14 steps to form

Main motor: 4KW, Hydraulic motor:2.2 KW

Frequency speed control. Forming speed of approx.12-15m/min

PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

Inverter brand: German Schneider Electric/Taiwan DELTA/SHILIN, Encoder brand: Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manual in English

After-sale service of 75mm Shutter Door Roll Forming Machine

1. The warranty of 75mm Rolling Shutter Roll Forming Machine

is one year after the client receives the machine.

Within one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories at extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,

Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
