Corrugated Roof Making Machine European Style, Corrugated Panel Roll Former

1. Main features of European Style Corrugated Panel Roll Forming Machine

The advantages of European Style Corrugated Panel Roll Forming Machine are as follows:

1. With automatic stacker, Save labor and Save Time

2. With scrap cutting device to cut balance material so that the machine can work for different material width

3. Easy operation, low maintenance cost

3. Popular in the European market (like the UK).

2. Detailed Images of European Style Corrugated Panel Roll Forming Machine

Machine Parts

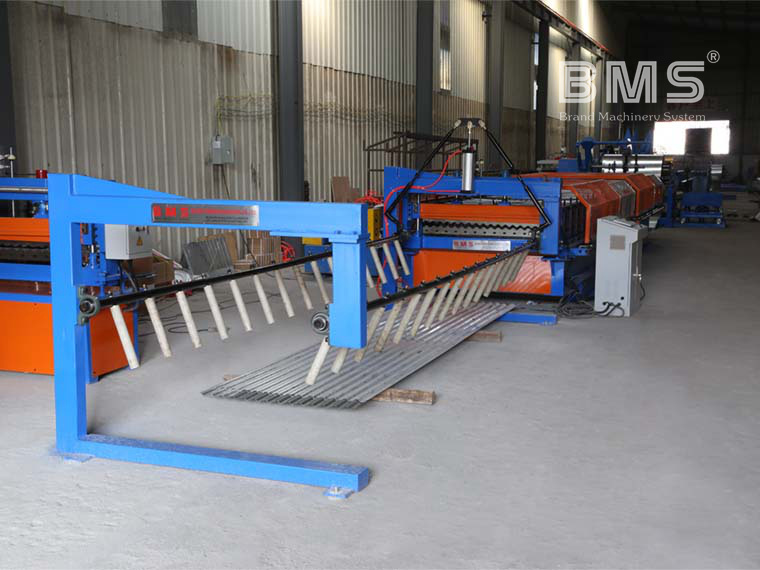

1) European Style Corrugated Panel Roll Forming Machine Automatic Stacker

Brand: BMS Original: China

2) European Style Corrugated Panel Roll Forming Machine Rollers

Brand: BMS Original: China

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

With Hard-Chrome Coating for long life.

With feeding material guide, Body frame made from 350# H type steel by welding

3) European Style Corrugated Panel Roll Forming Machine Post Cutter

Brand: BMS Original: China

Cutter frame made from high quality 20mm steel plate by welding

Post cut, stop to cutting, use the same hydraulic motor drive

Hydraulic motor: 3.7KW, Hydraulic pressure range: 0-12Mpa

Cutting tool material: mold steel Cr12, Heat treatment

4) European Style Corrugated Panel Roll Forming Machine Scrap Coiling System

Brand: BMS Original: China

Avoid wasting material

5) European Style Corrugated Panel Roll Forming Machine PLC Control Cabinet

Brand: BMS Original: China

WIth Aviation plug for easy operation

6) European Style Corrugated Panel Roll Forming Machine Decoiler

Brand: BMS Original: China

Hydraulic Decoiler with coil car and clamp arm: one set

Hydraulic control steel coil inner bore shrinkage and stop

Max. feeding width: 1500mm, coil ID range 470mm±30mm

Capacity: Max. 10 Tons

Other details of corrugated panel roll forming machine

Suitable for material with thickness 0.7-0.8mm

Shafts manufactured from 45#, Main shaft diameter=φ80mm, precision machined

Motor driving, Gear chain transmission, 19 rollers to form

Main motor=7.5KW, Frequency speed control. Forming speed of approx.15-20m/min

PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

Inverter brand: Schneider Electric/Taiwan DELTA/SHILIN, Encoder brand: Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,

Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
