    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine

    Double Layer Roof Panel Roll Forming Machine


    1. Main features of double layer roof panel forming machine


    The advantages of a double-layer roof panel machine are as follows:

    1. Able to produce two different profiles.

    2. Save space, more convenient.

    3. Easy operation, low maintenance cost

    4. Stable and durable


    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine

    2. Detailed Images of double layer roll forming machine

    Machine Parts

    1) Double layer roof panel machine pre-cutter

    Brand: BMS Original: China

    Avoid wasting material.


    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine

    2) Double layer roof panel machine rollers

    Brand: BMS Original: China

    Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

    with black treatment or Hard-Chrome Coating for options.

    With feeding material guide, body frame made from 300# H type steel by welding


    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine


    3) Double layer roof panel machine post cutter

    Brand: BMS Original: China

    Made by high-quality mold steel Cr12 with heat treatment

    Cutter frame made from high quality 25mm steel plate by welding
    Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa


    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine

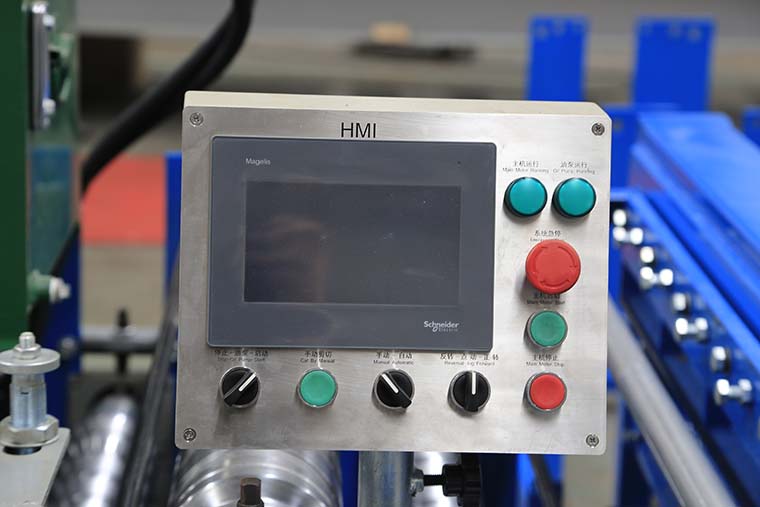

    4) Double layer roof panel machine touching screen

    Brand: BMS Original: China

    Easy to operate

    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine


    5) Double layer roof panel machine decoiler

    Brand: BMS Original: China

    Manual Decoiler: one set

    Un-powered, manually control steel coil inner bore shrinkage and stop

    Max. feeding width: 1250mm, coil ID range 470mm±30mm

    Capacity: Max. 8 Ton

    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine


    With 6 tons hydraulic decoiler for option

    Roof Panel Double Layer Roll Forming Machine , Roof Tile Manufacturing Machine


    6) Double layer roof panel machine exit rack


    Brand: BMS Original: China

    Un-powered, one unit


    Other detailes of double layer roof panel forming machine

    Suitable for material with thickness 0.3-0.8mm

    Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined

    Motor driving, Gear chain transmission

    Main motor=2.2KW, Frequency speed control. Forming speed of approx.12-15m/min


    PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

    Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)


    Combined with: PLC, Inverter, TouchScreen, Encoder, etc

    Cut-to-lengthtolerance≤±2 mm

    Control Voltage 24V

    User's manual in English


    After-sale service of double layer roof panel machine

    1. The warranty for double layer roof panel machine

    is one year after the client receives the machine.

    Within one year, we will courier the replacement parts to the client free of charge.

    2. We offer technical support for the entire life of our machines.

    3. We can send our technicians to install and train the workers in the clients' factories at extra cost.



    Terms of trade

    1. Minimum order quantity (MOQ): 1 piece

    2. Delivery time: about 30 workdays

    3. Port of loading: port of Xiamen

    4. Type of payment: by T/T or by L/C

    5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,

    Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
