    Corrugated Steel Roof Panel Roll Forming Machine For Building Material Making

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX17.5-75-825
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50sets/month
    Certification : SGS,CE,ISO9001
    Delivery Time : 45days
    • Product Details
    • Company Profile

    Corrugated Steel Roof Panel Roll Forming Machine For Building Material Making

    Corrugated Steel Roof Panel Roll Forming Machine For Building Material Making

    1. Main features of YX17.5-75-825 Corrugated panel roll forming machine

    Suitable for material with thickness 0.4-0.8mm
    Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined
    Motor driving, Gear chain transmission, 19 rollers to form
    Main motor=5.5KW, Frequency speed control. Forming speed of approx.15-20m/min


    2.Machine Parts

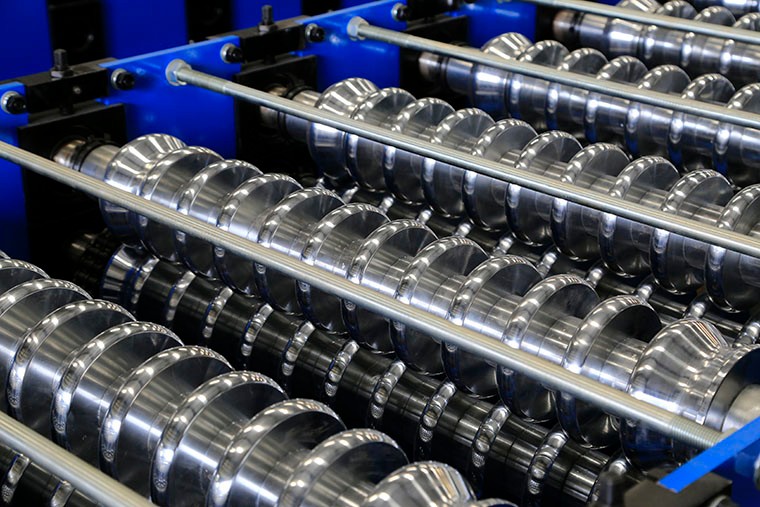

    1) YX17.5-75-825 Corrugated roof panel forming machine rollers
    Brand: BMS Original: China
    Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
    With black treatment or Hard-Chrome Coating for options.
    With feeding material guide, Body frame made from 350# H type steel by welding

    2) YX17.5-75-825 Corrugated roof panel machine----Pre-cutter
    Brand: BMS Original: China
    Avoid wasting material, easy to operate.

    3) YX17.5-75-825 Corrugated roof panel machine----Post cutter
    Brand: BMS Original: China
    Cutter frame made from high quality 20mm steel plate by welding
    Post cut, stop to cutting, use the same hydraulic motor drive
    Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa
    Cutting tool material: Cr12, Heat treatment

    4) YX17.5-75-825 Corrugated roof panel machine----Control cabinet
    Brand: BMS Original: China
    PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
    Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
    Combined with: PLC, Inverter, TouchScreen, Encoder, etc
    Cut-to-length tolerance≤±2 mm
    Control Voltage 24V
    User's manual in English

    5) YX17.5-75-825 Corrugated roof panel machine----Decoiler
    Brand: BMS Original: China
    Manual Decoiler: one set
    Un-powered, manually control steel coil inner bore shrinkage and stop
    Max. feeding width: 1000mm, coil ID range 470mm±30mm
    Capacity: Max. 5Ton

    5) YX17.5-75-825 Corrugated roof panel machine----Exit rack
    Brand: BMS Original: China
    Un-powered, three units

    Other detailes of YX17.5-75-825 Corrugated roof panel roll forming machine

    The advantages of YX17.5-75-825 Corrugated roof panel forming machine are as follows:


    1. Products widely used in a modern factory, such as a workshop,4S auto shop,is a new popular roof panel.
    2. Easy operation, low maintenance cost

    2. Detailed Images of YX17.5-75-825 Corrugated panel forming machine


    _16A8751 507.jpg


    _16A8756 507.jpg
