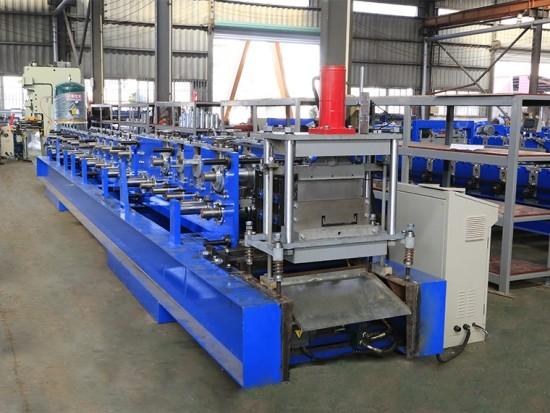

Scaffold Industry Roll Forming Machine for High Quality

1. Details of Scaffold Industry Roll Forming Machine for High Quality

Material

Material Thickness(&):0.4-0.5mm

Applicable material: Galvanized Steel Coils, Hot Rolled Coils, Cold Rolled Coils, yield strength 245Mpa or 550Mpa

Machine Components

1)Manual Decoiler: one set

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

2) Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;

Motor Driving, Gear chain transmission, 14 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=3KW, Frequency speed control

Forming speed of approx.12-15m/min

3)Hydraulic Cutting device

hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa

Cutting tool material: Cr12, Heat treatment

Cutter frame made from high quality 20mm steel plate by weld

Pre-punching & Pre-cutting, stop punching, stop to cutting,

4)PLC Control System(Touch screen brand: Taiwan WEINVIEW, Inverter brand: Finland VOCAN/Denmark Danfoss, Encoder brand: Japan Koyo)

Control the quantity and cutting length automatically

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±1mm

Control Voltage 24V

5) Exit Rack Un-powered, two units

2. Machine Features of Scaffold Industry Roll Forming Machine for High Quality

The advantages of Scaffold Industry Roll Forming Machine as follows:

1.Easy operation, low maintenance cost
2.Material saving

3. The type of panel is widely used.

4. High requirement for finished products

3. Detailed Images of Scaffold Industry Roll Forming Machine for High Quality

Name: Cutting device

Brand: BMS

Original: China

made by high-quality mould steel Cr12 with heat treatment

Name: rollers
Brand: BMS
Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.

Name: PLC control system
Brand: SIEMENS/SCHNEIDER ELECTRIC
Original: Germany/France
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)
