Hydraulic Cut Rolling Shutter Forming Machine For Door Frame / Door Slat Making

    Buy cheap Hydraulic Cut Rolling Shutter Forming Machine For Door Frame / Door Slat Making from wholesalers

    Buy cheap Hydraulic Cut Rolling Shutter Forming Machine For Door Frame / Door Slat Making from wholesalers
    • Buy cheap Hydraulic Cut Rolling Shutter Forming Machine For Door Frame / Door Slat Making from wholesalers

    Hydraulic Cut Rolling Shutter Forming Machine For Door Frame / Door Slat Making

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX18-81
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/month
    Certification : SGS,CE,ISO9001
    Delivery Time : 45days
    • Product Details
    • Company Profile

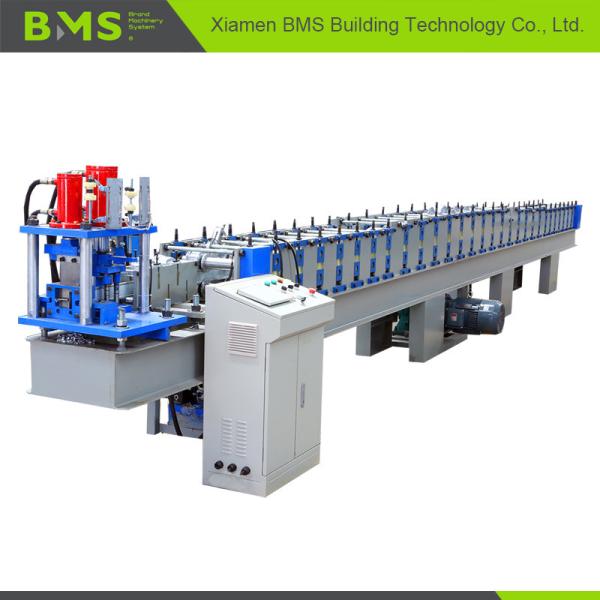

    Hydraulic Cut Rolling Shutter Forming Machine For Door Frame / Door Slat Making

    YX18-81 Shutter Roll Forming Machine

    Working materialgalvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
    Thickness0.7-1.2mm
    Yield strength245-500Mpa
    DecoilerManual/Hydraulic for options
    HousingH200 beam
    Sidewall thickness18mm
    Shaft45mm
    Forming station14
    Cutter materialCr12 Tooling Steel
    Outputabout 12-15 meters per minute

    1.Main features of YX18-81 Profile Shutter Roll Forming Machine


    The advantages of YX18-81 Shutter Roll Forming Machine are as follows:

    1. Able to produce slat with two different types of connection: by punching hole or by punching slot.

    2. Save space, more convenient.

    3. Easy operation, low maintenance cost

    4. Stable and durable


    2. Detailed Images of YX18-81 Shutter Roll Forming Machine


    Machine Parts

    1) YX18-81 Shutter Roll Forming Machine arc guiding: for feeding material more smoothy

    Brand: BMS Original: China
