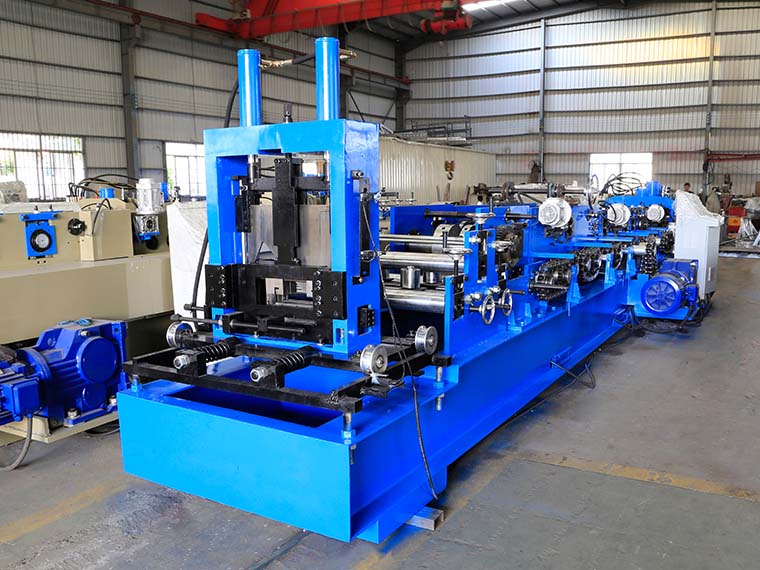

Automatic C Purlin Machine(C75-300 Purlin Roll Forming Machine)

1. Main features of quickly change C purlin roll forming machine

The advantages of C purlin machine AUTOMATIC size-change type are as follows:

1. Produce different purlin sizes without changing rollers or spacers.

2. No need changing cutter for different sizes.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range), help to save material

5. Optional Punch hole at any position of purlin web side and flange side

2.Detailed Images of C shaped steel forming machine

Machine Parts

1) C75-300 purlin machine punching system

Brand: BMS Original: China

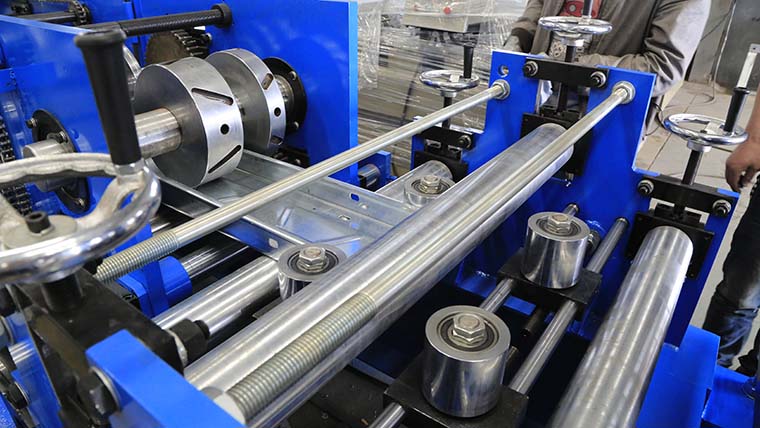

2) C75-300 purlin machine rollers

Brand: BMS Original: China

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body frame made from 400# H type steel by welding

4) C75-300 purlin machine post cutter

Brand: BMS Original: China

No need to change cutter for a different size,

made by high-quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

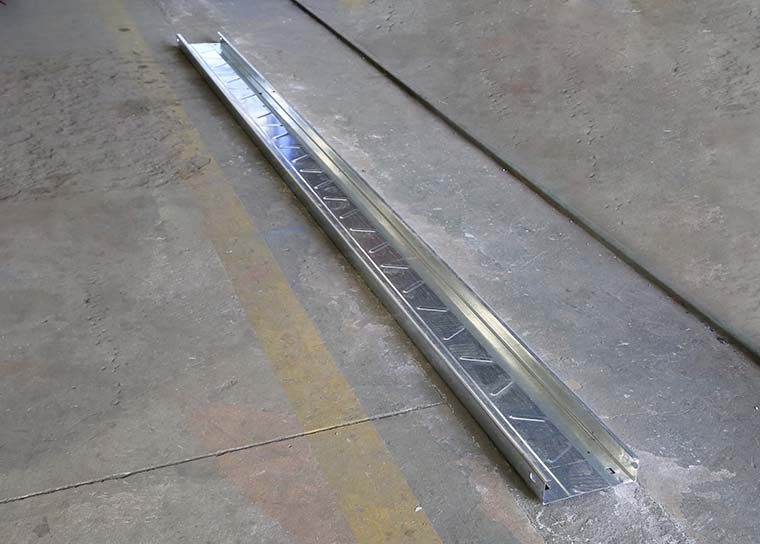

5) C75-300 purlin machine product show

Brand: BMS Original: China

6) C purlin machine decoiler

Brand: BMS Original: China

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

With 3 tons hydraulic decoiler for option

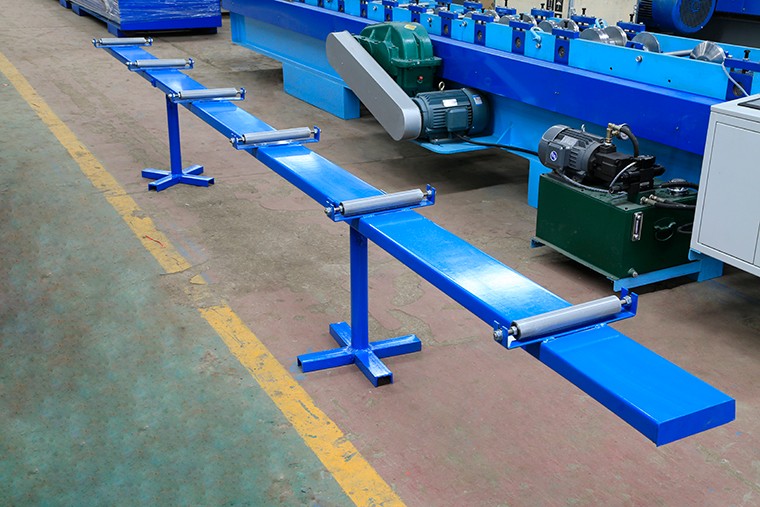

7) C purlin exit rack

Brand: BMS Original: China

Un-powered, one unit

3.Other detailes of C purlin roll forming machine

Suitable for material with thickness 1.5-3.0 mm

Shafts manufactured from 45#, Main shaft diameter=φ95mm, precision machined

Motor driving, Gear chain transmission, 16 rollers to form and 7 rollers for straightening and leveling

Main motor=18.5KW, Frequency speed control. Forming speed of approx.18m/min

PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)

Just adjust required WEB, HEIGHT and LIP by a hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like a traditional old-style machine (which takes over 45 minutes for each production size changing).

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manual in English

After-sale service of purlin roll forming machine C80-300

1. The warranty of purlin roll forming machine C80- 300

is one year after the client receives the machine.

Within one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories at extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,

Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.

Certifications of Automatic Change Size C Purlin Roll Forming Machine

Company information

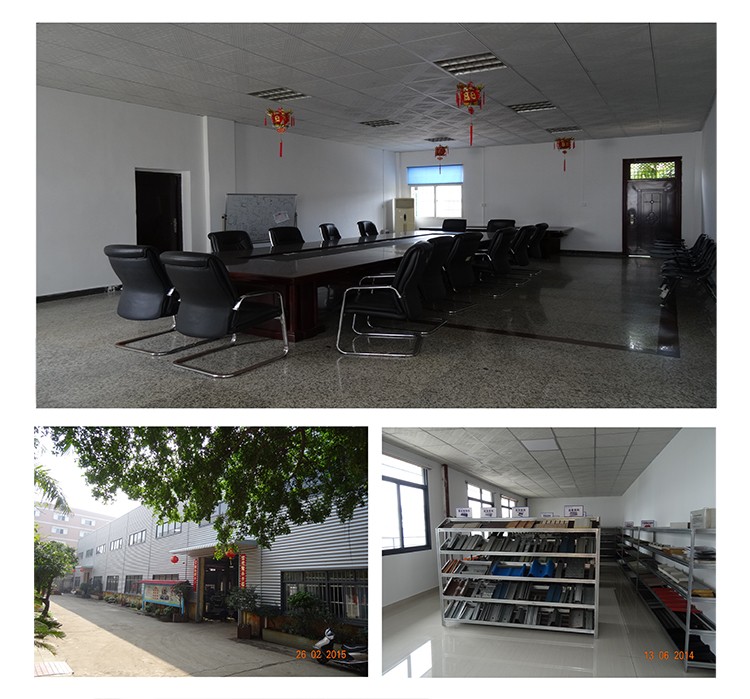

Company Show
