    Easy Operation C & Z Purlin Roll Forming Machine Similar Hayes Purlin Mill

    Ask Lasest Price
    Brand Name : BMS
    Model Number : CZ100-300
    Certification : ISO9001/CE/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50 Set/Sets per Month
    Delivery Time : 45DAYS
    • Product Details
    • Company Profile

    Easy Operation C & Z Purlin Roll Forming Machine Similar Hayes Purlin Mill

    1.Main features of similar Hayes Purlin Mill(hayes c & z purlin line)

    The advantages of similar Hayes Purlin Mill(hayes c & z purlin line) are as follows:
    1. Produce different purlin sizes without changing rollers or spacers.
    2. Pre-cutting design, no need changing cutter for different sizes.
    3. Easy operation, low maintenance cost
    4. Infinite sizing(any size within machine range), help to save material
    5. Optional Punch hole at any position of purlin web side and flange side


    2.Detailed Images of similar Hayes Purlin Mill(hayes c & z purlin line)

    Machine Parts
    1) CZ purlin machine punching system
    Brand: BMS Original: China
    with 3 cylinders (one cylinder for the single hole and 2 cylinders for dual-holes) or 5cylinders(popular for the solar industry.
    2)similar Hayes Purlin Mill(hayes c & z purlin line) rollers
    Brand: BMS Original: China
    Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12(=D3 steel), CNC lathes, Heat Treatment.
    with Hard-Chrome Coating or black treatment for long working life.
    With feeding material guide, body frame made from 450# H type steel by welding
    3) CZ purlin machine control cabinet
    Brand: BMS Original: China
    PLC Control System (inverter brand:Schneider Electric/ Siemens/Taiwan DELTA,
    Encoder brand: Japan Koyo/OMRON)
    The interchange between C purlin and Z purlin: by manual changed,
    It takes only 5-10 minutes to finish all. But from C100-300 or Z100-300,
    change the size by PLC system automatically: changeover by just press keys on the touch screen
    (input the required production data on the touch screen),
    the machine will control the quantity and punching, cutting length automatically.

    Combined with: PLC, Inverter, TouchScreen, Encoder, etc
    Cut-to-length tolerance≤±2 mm
    Control Voltage 24V

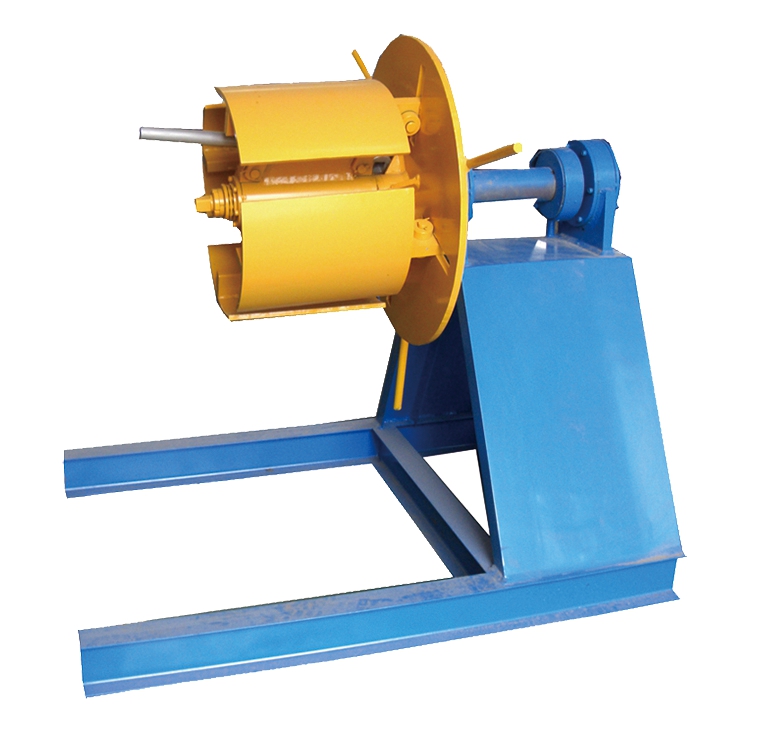

    5) Similar Hayes Purlin Mill(hayes c & z purlin line) decoiler
    Brand: BMS Original: China
    Manual Decoiler: one set
    Un-powered, manually control steel coil inner bore shrinkage and stop
    Max. feeding width: 500mm, coil ID range 470mm±30mm
    Capacity: Max. 5Ton


    6) CZ purlin exit rack

    Brand: BMS Original: China

    Un-powered, one unit

    Other detailes of similar Hayes Purlin Mill(hayes c & z purlin line)

    Suitable for material with thickness 1.0-3.0mm
    Shafts manufactured from 45#, shaft diameter=φ90mm
    (bigger shaft to ensure stable working for a long time and no curving or transforming),precision machined
    Motor driving, Gear chain transmission, 15 rollers to form and 4 rollers for straightening and leveling
    Main motor=22KW(bigger power for higher speed) , Frequency speed control. Forming speed of approx.18m/min
    hydraulic motor:11KW(bigger power for powerful cutting), Hydraulic pressure range: 0-16Mpa
    User's manual in English
