    YX35-199-990 Glazed Tile Roll Forming Machine WIth 5T Decoiler


    ► Profile



    Technical data


    Glazed tile making machine, Roof tile roll forming machine, Glazed tile forming machine

    No.ItemSpecifications
    1Coil Width1250mm
    2Diameter of shaft80/95mm
    3Forming Speed6-8meters/min
    4Middle plate20mm
    5Material of shaft45#steel with tempering
    6forming thickness0.4mm-0.6mm
    7material of rollers45#steel
    8Cutting typehydraulic -cutting
    9Main power7.5+5.5kw
    10Main frame450H steel
    11Control systemPLC
    12Brand of electrical partsDelta
    13Manual decoiler5 tons
    14Power3 Phase,380 Voltage,50Hz

    ► Material


    Effective Width: 995mm
    Feeding Width:1219mm
    Material Thickness:0.4-0.6mm
    Applicable Material: GI,PPGI
    With Yield Strength: 235-550Mpa


    ► Work Flow


    Decoiler→Manual Pre-CutterGuide Feeding→Roll Forming System→Hydraulic Post Cutter→Exit Rack



    ► Machine Components


    1) Manual Decoiler: one set

    Un-Powered,Manually Control Steel Coil lnner Bore Shrinkage AndStop.

    Max Feeding Width:1250mm,Coil lD Range:508mm±30mm.Capacity:Max.5 Ton.



    2) Feeding Guide Device&Pre-cutter
    With Manual pre-cutter for easy operation and save material:The pre-cutter is connected with PLC control system,PLC is calculating profile length within roll forming. Once material is required to change,PLC is calculating the length for total quantity and remind operator,production finishes and able to manual shearing material before roll forming so as to change material for new production.It is the advanced function and good for production to save material, no waste.

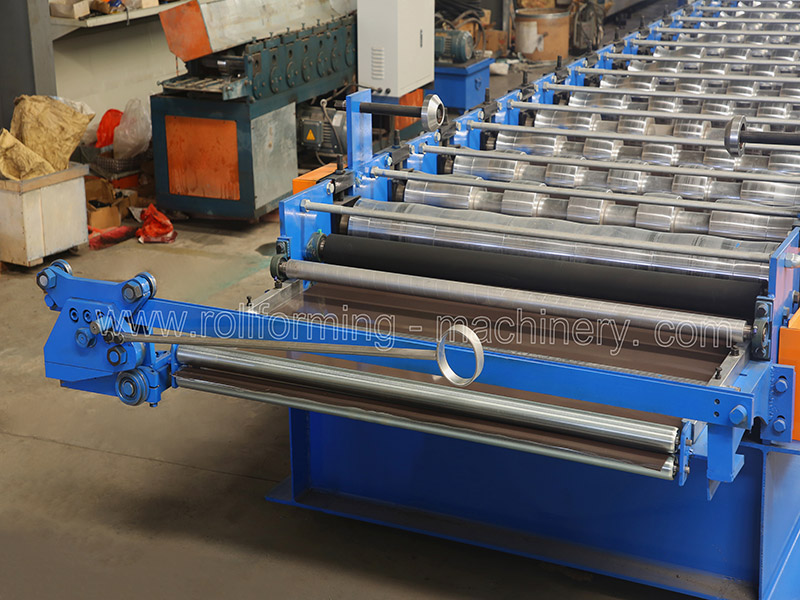

    3) Main Machine
    with feeding material guide, body frame made from H450 type steelby welding.
    Side wall thickness: Q235 t18mm.
    Rollers manufactured from 45# steel,CNC lathes,HeatTreatment,hard Chrome Coated.
    with thickness 0.04mm,surface with mirror treatment(for longer lifeand anti-rust).
    Shafts Diameter=80/95mm, precision machined.
    Gear/Sprocket driving,about 18-steps to form.
    Main Motor=7.5KW , Frequency speed control.
    4) Hydraulic Stair-Pressing and Cutting Device
    2-steps Pressing Method:clamp sheet first, and then press, which No fold andbroken happen after pressing, make the finished tile appearance
    looks beautiful,Stair depth=13mm
    Cutter frame made from high quality 20mm steel plate by welding
    Stop to press, post cut,stop to cutting, two pieces cutting blades, no blankingcutting, no waste material
    Hydraulic motor:5.5KW ;Cutting pressure: 0-16Mpa
    Cutting tool material: Cr12MoV(= SKD11 with at least one million times ofcutting life), Heat treatment to HRC58-62 degree
    The cutting power is provided by the main engine hydraulic station

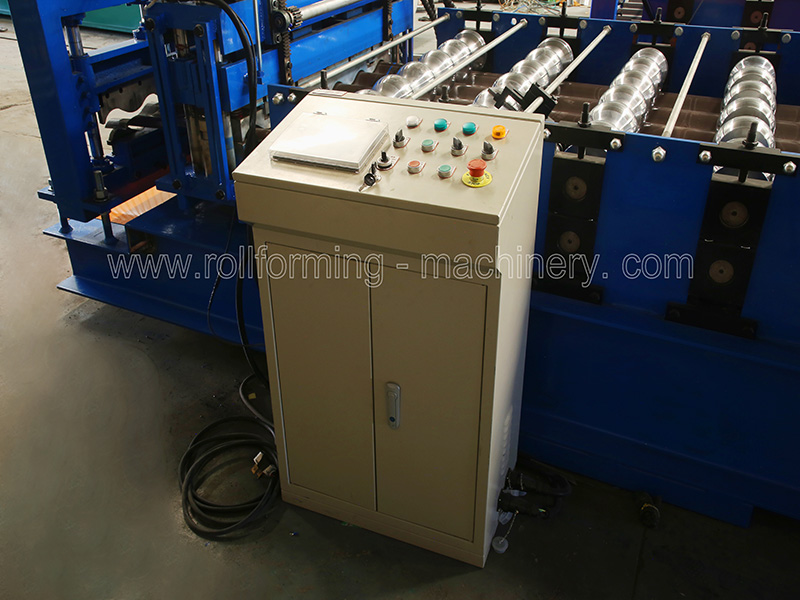

    5) PLC Control System
    Control The Quantity And Cutting Length Automatically.
    Input The Production Data(Production Batch,pcs,Length,etc.) On TheTouch Screen.
    lt Can Finish The Production Automatically.
    Combined With: PLC, Inverter,Touch Screen, Encoder, etc.

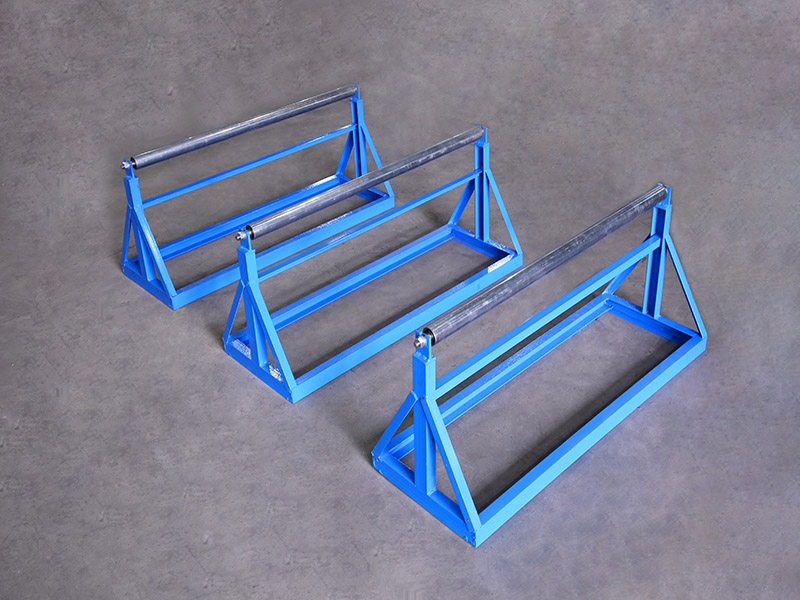

    6) Exit Rack
    Un-power,three units,with rollers on it for easy movement

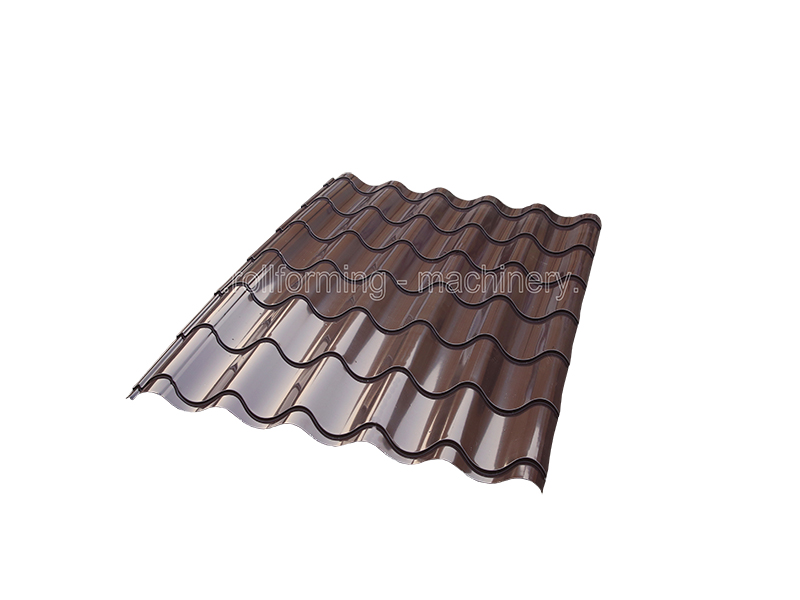

    7) Product Show
