    18-20m/Min Corrugated Panel Roll Forming Machine CE SGS Approved

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX18-75-975
    Certification : CE/SGS/ISO9001
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 30set/month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    18-20m/Min Corrugated Panel Roll Forming Machine CE SGS Approved


    High Quality 18-20 M / Min Corrugated Panel Roll Forming Machine CE/SGS Approved


    ¶ Profile

    ¶ Technical parameter:


    Rolling Speed
    18-22m/min
    Feeding width
    1219mm
    Thickness
    0.3-0.6mm
    Control System
    PLC
    Roller Stations
    about 20 stations
    Roller Material
    45# forge steel, coated with chrome
    Motor Power
    11kw
    Hydraulic power
    4kw
    Hydraulic Pressure
    12Mpa
    Tolerance
    0.5mm
    Power supplier
    380V, 60HZ,3 phase
    Way Of Drive
    1.2 inch single chain
    Machine weight
    about 8 tons

    ¶ Material Detail

    The Length of Tolerance:±0.5mm

    Wave Height Tolerance: +0.5mm
    Effective Width Tolerance: -2/+2mm
    lnspection Thickness: 0.45mm
    Meterial Thickness: 0.3-0.6mm
    Applicable Material: Galvanized Sheet, Color Coated Board
    The Material of Machine Testing:BMS Group will provide the feed size to demander for purchingin two weeks before machine testing.

    ¶ Flow chart:


    Decoiler(5 tons)→Feeding Guide Device → Manual Pre-Cutting Device →Roll Forming Mill (with Protecting Cover )→ Hydraulic Post Cutting Device(two pieces cutter fromblanking ) →Exit Rack*3 → PLC Control System → Hydraulic Station


    ¶ Machine Components


    1,Decoiler

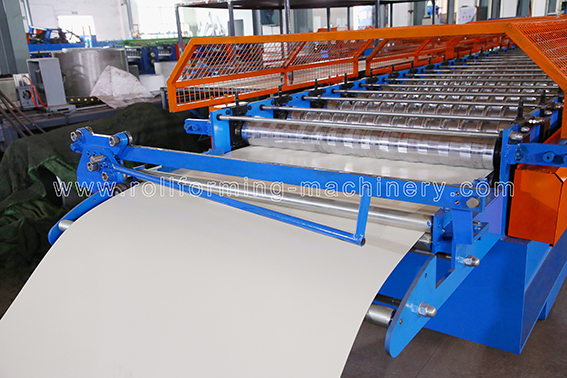

    2,Feeding Guide Device

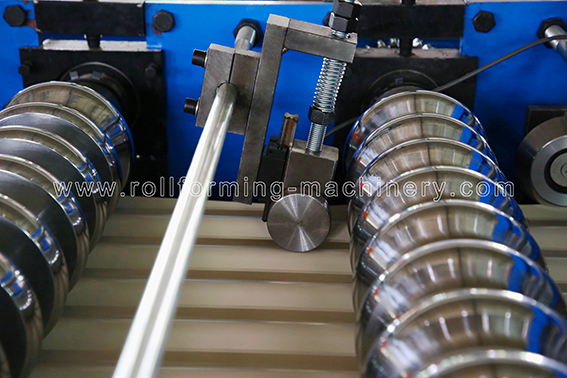

    3,Roll Forming Mill


    Body frame made from H450 type steel by weldingSide wall thickness: Q235 t18mm;

    Shafts manufactured from 45# steel, Shaft Diameter: p75

    Spacer made from 45# steel,CNC lathes,Hard chrome platingtreatment

    Every Machine with Cold Water Device.Gear & Chain drive about 20-step to form.

    Forming Speed:18-22m/min; Produced Speed:18-22m/min (Including punching and cutting time)Main Motor: 11KW; Chain: Huade

    All the screw bolts with grade 8.8 (Cheap factories use low grade 4.8) to ensure fix the machinestructure tightly and long life during the machine long time running.


    4,Hydraulic Post Cutter Device


    Made by high quality mold steel Cr12MoV

    with heat treatmentCutter frame made from high quality steel plate by welding

    Hydraulic motor: 4KW


    5,Encoder



    ¶ After Sale Servicve


    1,The warranty is 24 months after the client receives the machine. Within the 24 months, we will courierthe replacement parts to the client free of charge.

    2,We offer technical support for the entire life of our machines.
    3,We can sent our technicians to install and train the workers in the clients' factories with extra cost.

    ¶ Terms of trade


    1. Minimum order quantity (MQO): 1 piece
    2. Delivery time: about 45 workdays
    3. Port of loading: port of Xiamen
    4. Type of loading: by T/T or by L/C
    5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand,
    Philippines, Myanmar, Vietnam, south, Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.


    ¶ Packing Method


    Main body of machine is naked and covered by plastic film ( to protect of dust and corrosion), loaded intocontainer and steadily fixed in container suitable by steel rope and lock,suitable for long-distance transportation.
