    Professional Quad Gutter Roll Forming Machine For YX90-150 Profile


    Profile



    Material


    Effective Width:150mm
    Feeding Width: about 310mm
    Material Thickness:0.4-0.5mm
    Applicable Material:PPGI
    With Yield Strengt:550Mpa

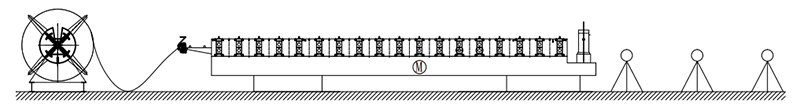

    Work Flow


    Decoiler→Manual Pre Cutter Device→Feed Guide Device→Rolling Forming System→Hydraulic Post Cutting Device→Exit Rack



    Packing List


    No.ItemUnitQty
    1.Decoilerset1
    2.Main Roll Forming Machineset1
    3.Cutting Systemset1
    4.Oil Pumpset1
    5.PLC control Boxset1
    6.Exit Rackset1
    7.Toolsbox1


    Machine Components


    1) 3 Ton Manual Decoiler: one set


    Manual control steel coil inner bore shrinkage and stop
    Max. feeding width:300mm,Coil ID Range:508±30mm

    2) Manual Pre-Cutter & Feed Guide Device


    A left and right guiding device at the main entrance of the machine. During work,Raw materials on both sides of the plate the enter into the machine by the left and right guiding device,make the raw materials and roll forming system to maintain the correct position. The guiding position can be adjusted by the manual screw mechanism,and the left and right can be adjusted independently.



    3) Main Machine

    body frame made from H450 type steel by welding
    Side wall thickness: Q235 t18mm
    Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
    Shafts Diameter=ф75mm,precision machined
    Gear/Sprocket driving,about 18-step to form
    Main Motor(Polaroid brand)=7.5KW,Frequency speed control
    Speed redcucer motor:R series
    Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)
    Chain size: one inch with 18 teeth
    All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
    Real forming speed 12-15m/min



    4) Post Hydraulic Cutting Device


    Leveling device will make the product more beautiful
    Hydraulic motor: 3KW;Cutting pressure: 0-16Mpa
    Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
    The cutting power is provided by the main engine Independent hydraulic station


    5) PLC Control System


    Control The Quantity And Cutting Length Automatically

    Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
    It Can Finish The Production Automatically.
    Combined With: PLC, Inverter, Touch Screen, Encoder, etc


    6) Exit Rack


    Un-powered, Two units,with rollers on it for easy movement



    7) Product Show




    Packing Style


    Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
