    Quick Change Scaffold Plank Roll Forming Machine , Metal Roll Forming Machine

    Ask Lasest Price
    Brand Name : BMS
    Model Number : C200-300
    Certification : SGS,CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50sets/month
    • Product Details
    • Company Profile

    Quick Change Scaffold Plank Roll Forming Machine , Metal Roll Forming Machine

    Quick Change Scaffold Plank Roll Forming Machine ,Metal Roll Forming Machine,Máquina de conformación de rodillos metálic


    1. Details of Quick Change Scaffold Plank Roll Forming Machine

    Material Thickness(&):1.50-2.0mm
    Applicable material: Galvanized Steel Coils, Cold Rolled Coils, yield strength 245Mpa - 550Mpa
    Machine Components
    1)Manual Decoiler: one set
    Max. feeding width: 500mm, coil ID range 508mm±30mm

    Capacity: Max. 5Ton

    2) Cold Rolling Mills:

    Profile(Change Size By Spacer)


    Work Follow

    Decoiler→Leveling Device→Punching Machine→Guide Feeding→Roll Forming System→Hydraulic Post Cutter →Exit Rack



    Machine Components

    1) Manual Decoiler: one set


    Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 500mm,coil ID range 508mm±30mm Capacity: Max. 5 Ton.


    2) Leveling Device


    With feeding material guide, body frame made from H450 type steel by welding.
    Side wall thickness:Q235 t20mm.
    Shafts manufactured from 45# steel,Diameter=φ75/90mm,precision machined.
    Motor power:4KW.


    3) Serve-Drive& Punching Machine


    63tons HIGH SPEED punching machine before roll forming, equip with Three sets of punching model.Punching machine four sides with safety cover and one side with open the door.By PLC system control.Material sending by the servo motor for punching more accuracy, servo motor power 3 KW.

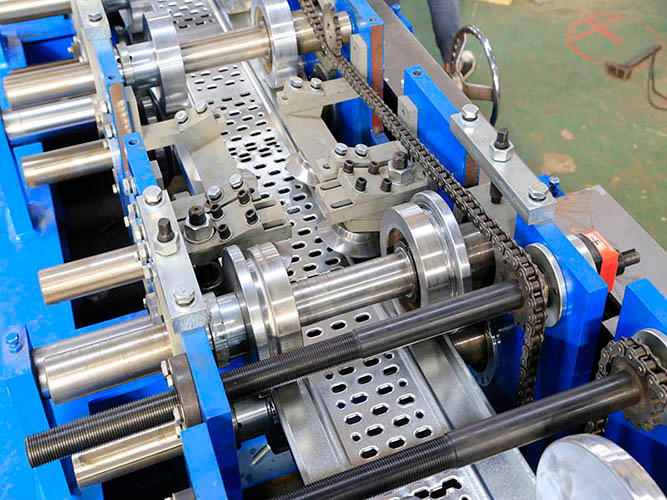

    4) Main Machine


    Body frame made from H450 type steel by welding.
    Side wall thickness: Q235 t20mm.
    Rollers manufactured from GCr15 Steel(=EN31 steel), precision machined,heat treatment,HRC58-62
    Shafts manufactured from 45# steel,Diameter=φ75/95mm,precision machined,Quenching and tempering,Size-changing by spacer.
    Gear/Sprocket driving, about 18-step to form.
    Main Motor(Polaroid brand)=11KW , Frequency speed control.
    Speed reducer motor:K series.
    Production speed: 5-8m/min(including punching and cutting).

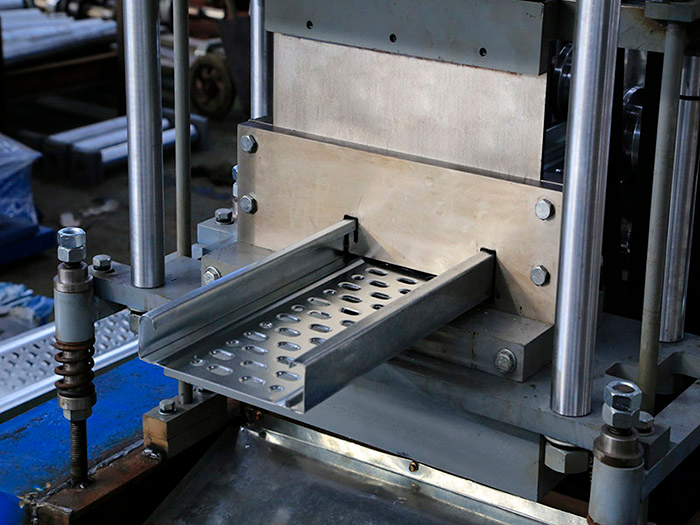

    4) Hydraulic Post Cutter

    Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking.
    Hydraulic motor:5.5KW.
    Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
    The cutting power is provided by the main engine hydraulic station.



    5) PLC Control System

    Control The Quantity And Cutting Length Automatically.

    Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
    It Can Finish The Production Automatically.
    Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


    6)Exit Rack

    Un-powered, one unit,with rollers on it for easy movement



    7)Product Show




    After-Sale Service


    1. The warranty is 24 months after the client receives the machine.
    Within the 24 months, we will courier the replacement parts to the client free of charge
    2. We offer technical support for the entire life of our machines
    3. We can send our technicians to install and train the workers in the clients' factories with
    extra cost



    Terms Of Trade


    1.Minimum order quantity (MOQ): 1 Set

    2.Delivery time: about 45 workdays
    3.Port of loading: port of Xiamen
    4.Type of payment: by T/T or by L/C
    5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
    Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


    Packing Style


    Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
