    Solar Panel Frame Roll Forming Machine 20m/Min Galvanized Steel

    Solar Panel Frame Roll Forming Machine

    Main machine parameter

    NoMain ItemDescription
    1Suitable MaterialGalvanized Steel,Cold Roll Steel
    2Material thickness2.0-2.8mm
    3Material Yield strengthG235-G550
    4Forming stationAbout 22 steps
    5RolledGCr15 steel
    6Shafts Diameterф75
    7Hydraulic power5.5 kw
    8Main power15kw
    9PLC BrandSiemens/Schneider/Delta
    10Touch ScreenSiemens
    11EncoderOmron
    12Exit Rack

    Unpower, Three-units, with rollers


    Work Follow:

    Decoiler→Leveling Device→Punching Machine→Hydraulic pre-cutting device→Roll Forming System→Hydraulic Post Cutter→Exit Rack


    Profile



    Machine Components

    1)3 Ton Decoiler: one set
    Manual control steel coil inner bore shrinkage and stop
    Max. feeding width:300mm
    Coil ID Range:508±30mm
    Max capacity:3ton

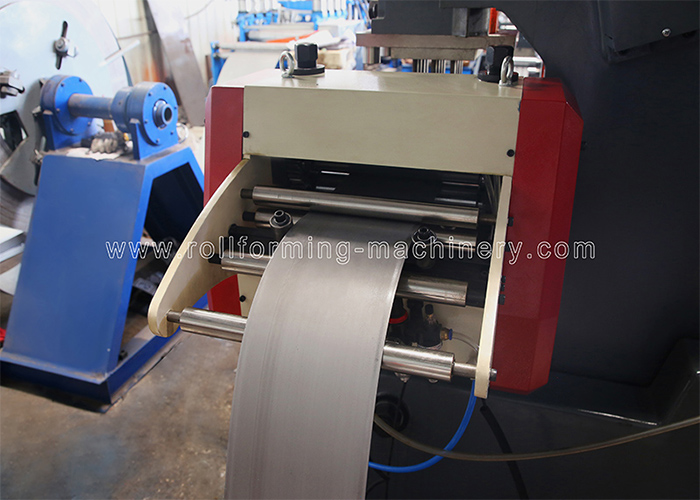

    2)Leveling Device
    Up Three down Four totally seven roller leveling device
    With feeding material guide, body frame made from H450 type steel by welding
    Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.


    3)Serve-Drive& Punching Machine
    63 Tons HIGH SPEED punching machine before roll forming, equip with one set of punching model.Punching machine four sides with safety cover and one side with open the door
    By PLC system control

    Air source of the punching machine will be supplied by the buyer.
    Material sending by the Servo motor for punching more accuracy

    4)Hydraulic pre-cutting device

    5)Roll Forming Machine
    Body frame made from H450 type steel by welding
    Side wall thickness: Q235 t18mm ;Tie rod:ф22 Galvanized
    Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated;with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust);Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=φ75/85mm,precision machined
    Gear & chain drive about 22-step to form
    Main Motor=15KW ,Frequency speed control
    Speed reducer motor:K series
    Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)
    All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
    Product speed:12-18m/min(Including punching and cutting time)


    6) Hydraulic Post Cutter


    Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
    Hydraulic motor: 5.5KW ;Cutting pressure: 0-12Mpa;
    Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
    The cutting power is provided by the independent engine hydraulic station(Look Below)


    7) PLC Control System


    Control The Quantity And Cutting Length Automatically
    Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
    It Can Finish The Production Automatically.
    Combined With: PLC, Inverter, Touch Screen, Encoder, etc



    8)Exit Rack

    Un-powered, One unite,with rollers on it for easy movement.

    9)Product Show



    Packing Style
    Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.




    After-Sale Service
    1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
    2. We offer technical support for the entire life of our machines.
    3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
