    AUTO Change Batten Machine For Solar System 18-20m/Min

    AUTO Change Height & Width Batten Purlin Machine

    Main machine parameter

    NoMain ItemDescription
    1Suitable MaterialGalvanized Steel,Cold Roll Steel
    2Material thickness3.0-4.0mm
    3Material Yield strengthG340-G550
    4Forming stationAbout 24 steps
    5RolledGCr12 steel
    6Shafts Diameterф95
    7Hydraulic power3 kw
    8Main power22 kw+22 kw
    9PLC BrandSiemens/Schneider/Delta
    10Touch ScreenSiemens
    11EncoderOmron
    12Exit Rack

    Unpower, One-unite, with rollers


    Work Follow:

    Decoiler→Feeding and Leveling Device→Hydrualic Pre-Cutting&Punching Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack




    Machine Components

    1)5 Ton Hydraulic Decoiler: one set


    1) 5 Ton Hydraulic Decoiler: one set
    Hydraulic control steel coil inner bore shrinkage and stop
    Max. feeding width:600mm
    Coil ID Range:470-560mm,Outside Diameter:1500mm
    Max capacity:5 ton, Hydraulic motor:3KW, frequency speed control

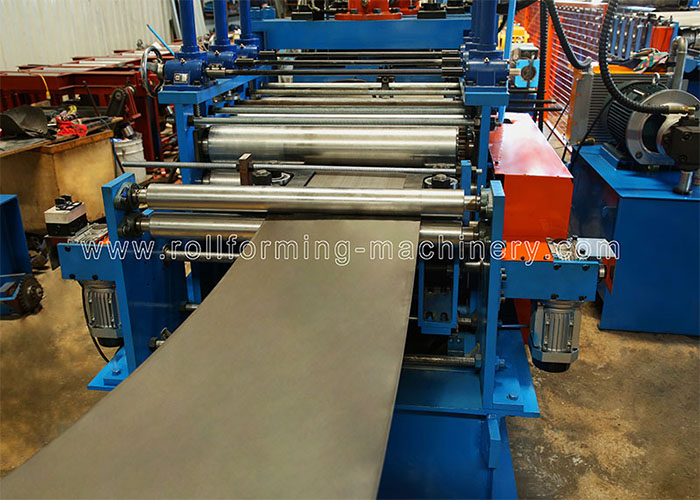

    2) Feeding And Leveling Device

    Up Three down Four totally seven shafts leveling device
    With feeding material guide, body frame made from H450 type steel by welding
    Side wall thickness: Q235 t30mm
    Shafts manufactured from GCr15 Steel,Diameter=φ105mm,precision machined,Quenching and tempering
    Use Two electric motors AUTO adjust the material feeding width

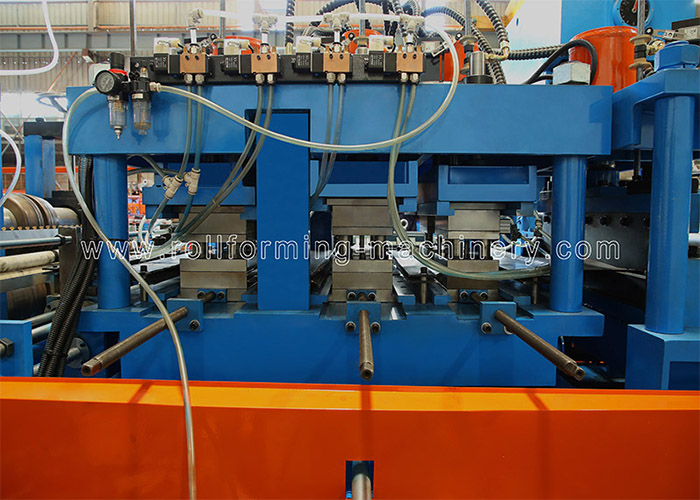

    3) Hydraulic Pre-Cutting&Punching Device

    Pre-punching and pre-cutting, use the same hydraulic system
    Hydraulic motor:18.5KW, Hydraulic pressure range:0-25Mpa(250Bar)
    Punching and Cutting tool material:mold steel Cr12MoV(=D2 steel, with one million times punching/cutting life), Heat treatment to HRC58-62 degree
    3-cylinders hole punching system for punching both on web and



    4) Main Machine
    Body frame made from H450 type steel by welding
    Archway Structure
    Rollers manufactured from Cr12 steel,CNC lathes,Heat Treatment,HRC58-62
    Shafts Diameter=ф95,precision machined
    Gear/Sprocket driving,about 24-step to form
    Main Motor=22KW+22KW, Frequency speed control
    Material sending by the Servo motor for punching more accuracy, servo motor power 3 KW






    5) Post Hydraulic Cutting Device
    Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
    Hydraulic motor:18.5KW,Cutting pressure: 0-16Mpa
    Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree



    6)PLC Control System

    Control The Quantity And Cutting Length Automatically
    Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
    It Can Finish The Production Automatically.
    Combined With: PLC, Inverter, Touch Screen, Encoder, etc



    7)Exit Rack

    Un-powered, One unite,with rollers on it for easy movement.

    8)Product Show



    Packing Style
    Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.




    After-Sale Service
    1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
    2. We offer technical support for the entire life of our machines.
    3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
