    14 Steps Roller Shutter Door Machine Cold Roll Steel

    Ask Lasest Price
    Brand Name : BMS
    Model Number : 75/80/90/100/110
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 30set/month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    14 Steps Roller Shutter Door Machine Cold Roll Steel

    High Quality Roller Shutter Door Machine 75/80/90/100/110


    Main machine parameter

    NoMain ItemDescription
    1Suitable MaterialGalvanized Steel,Cold Roll Steel
    2Material thickness0.5-0.8mm or 0.8-1.2mm
    3Material Yield strength

    G245-G345

    4Forming station14 steps
    5RolledGCr12 steel
    6Shafts Diameterф60
    7Main power7.5kw
    8PLC BrandSiemens/Schneider/Delta
    9Touch ScreenSiemens
    10EncoderOmron
    11Exit RackUnpower, One-units

    Work Follow:

    DecoilerFeed Guide DeviceRolling Forming SystemLeveling Device →Hydraulic Not Stop Cutting DeviceExit Rack

    Profile Drawing


    Main Components

    1) 5 Ton Hydraulic Decoiler: one set


    Hydraulic control steel coil inner bore shrinkage and stop
    Max. feeding width:600mm
    Coil ID Range:508±30mm,Outside Diameter:1500mm
    Max capacity:5 ton, motor:3KW, frequency speed control
    Oil pump motor:3KW
    Add automatic feeding power and self-stop device


    2) Feed Guide Device

    A left and right guiding device at the main entrance of the machine. During work,Raw materials on both sides of the plate the enter into the machine by the left and right guiding device,make the raw materials and roll forming system to maintain the correct position. The guiding position can be adjusted by the manual screw mechanism,and the left and right can be adjusted independently.


    3) Main Machine

    body frame made from H600 type steel by welding
    Side wall thickness: Q235 t20mm
    Rollers manufactured from GCr15(=EN31 Steel),CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
    Shafts Diameter=ф60mm,precision machined
    Gear/Sprocket driving,about 14-step to form
    Main Motor(Polaroid brand)=7.5KW,Frequency speed control
    Speed redcucer motor:K series
    Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)
    Chain size: one inch with 18 teeth
    All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
    Real forming speed 0-20m/min(Not include cutting time and punching time

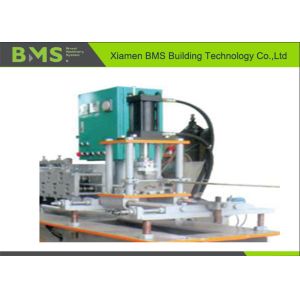

    4)Leveling Device&Post No-Stop Hydraulic Cutting Device(Include Punching)

    Leveling device will make the product more beautiful
    Punching and hydraulic cutting device is no-stop type by Mechanical fixed-length shearing to ensure production length accurancy.
    The device can press LOGO on the slat web
    Hydraulic motor: 4KW ;Cutting pressure: 0-16Mpa
    Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
    The cutting power is provided by the main engine Independent hydraulic station


    5) PLC Control System

    Control The Quantity And Cutting Length Automatically

    Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
    It Can Finish The Production Automatically.
    Combined With: PLC, Inverter, Touch Screen, Encoder, etc


    6.Exit Rack


    Un-powered, Four units,with rollers on it for easy movement

    4 units * 3m= 12m


    Terms Of Trade


    1. Minimum order quantity (MOQ): 1 Set.
    2. Port of loading: port of Xiamen.
    3. Type of payment: by T/T or by L/C.
    4. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.


    Packing style

    Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
    and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.



    After-Sale Service

    1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
    2. We offer technical support for the entire life of our machines.
    3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
