Metal Door Frame Roll Forming Machine YX37-135

Main machine parameter

Work Follow:

Decoiler→Feeding Guide Device→Roll Forming System→Hydraulic Post Punching & Cutting Device→Exit Rack

Profile Drawing

Main Components

1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 500mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton

2) Feed Guide Device

The guiding position can be adjusted for suitable material feeding.

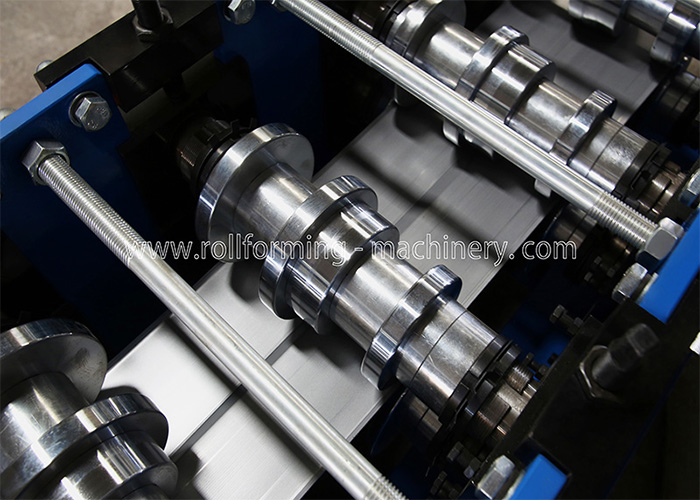

3) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 Steel,Heat Treatment,HRC58-62
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 14-step to form
Main Motor(Polaroid brand)=11KW,Frequency speed control
Real forming speed:15-18m/min

4)Hydraulic Post Punching & Cutting Device

Post to cut & Punch holes, stop to cutting & punching,Three pieces type of cutting blade design
Hydraulic motor: 7.5KW,Cutting And Puching Device Use The Same Hydraulic Station
Cutting & Punching moulds material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6.Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

Terms Of Trade

1. Minimum order quantity (MOQ): 1 Set.
2. Port of loading: port of Xiamen.
3. Type of payment: by T/T or by L/C.
4. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.

Packing style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
