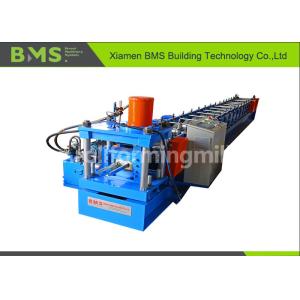

Door Frame Roll Forming Machine YX37-135

Main machine parameter

Work Follow:

Decoiler→Feed Guide Device→Rolling Forming System→Hydraulic Post Cutting Device→Exit Rack

Profile Drawing

Main Components

1) Manual Decoiler(Double Coils): one set

Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 500mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton

2) Feed Guide Device

The guiding position can be adjusted for suitable material feeding.

3) Main Machine

Body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from 40Cr Steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor(Polaroid brand)=11KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)

4)Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 3KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6.Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

7)Product Show

Terms Of Trade

1. Minimum order quantity (MOQ): 1 Set.
2. Port of loading: port of Xiamen.
3. Type of payment: by T/T or by L/C.
4. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.

Packing style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

After-Sale Service

BMS Machine was established in 1996, a member of BMS Group, which covers an area of more than 30000 square meters. With over 20 years of professional experience, we have been the TOP 3 manufacturer and exporter of HIGH-QUALITY cold roll forming machines in China. We are an ISO9001 approved company and have European CE certification (issued by SGS). We have the honour to serve some of the famous companies in the world such as TATA STEEL, BlueScope STEEL, LCP(a member of LYSAGHT Group of Companies), ROLL FORM GROUP LTD, etc.

We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.
2) for Door and Window Industry: door frame forming machine, rolling shutter door machine, shutter door packing machine, garage door guide rail forming machine, etc.
3) for Metal Ceiling Industry: ceiling T grid machine(T-bar forming machine), ceiling furring system, drywall partition system, aluminium ceiling grilliato and strip production line, etc.
4) for Cable Tray Industry: unistrut channel forming machine, cable ladder forming machine, decorative cable channel forming machine.
5) for HVACR Industry: fire damper frame(VCD frame) forming machine CU//Z shape ventilation system frame forming machine, louvre forming machine, etc.
6) for Solar Industry: solar panel frame/solar PV structure forming machine
7) for Scaffold Industry: scaffold industry roll forming machine.
8) for Shelving and Storage Industry: shelve upright/plate roll forming production line, racking upright roll forming production line, boxed-beam roller former with connection machine.
9) for Customized Roll Forming Machines and Accessories.

We have great confidence in the quality and precision of our cold roll forming machines. Our main technology comes from Taiwan, but with China price.
Our cold roll forming machines have been exported to more than 60 countries and regions, including Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia, etc. Welcome customers from all over the world to cooperate with us on mutual benefits basis, OEM/ODM orders are also welcome. We know well the particular requirements for the customers of different countries and regions. And we have an outstanding export team who will take your requests. The design team will prepare you the perfect machines as per your specific requirements. Our experts and skilled workers complete the work with great precision.
