320mm-650mm Standing Seam Metal Roof Machine With 5T Uncoiler

This Standing Seam Metal Roof Machine consist of 5T uncoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.

Optional: hydraulic decoiler /automatic stacker

Working Flow

Decoiling--sheet feeding--roll forming--automatic cutting--run out table

Tolerance

Machine Parameters

Sidewall thickness: Q235 t16mm

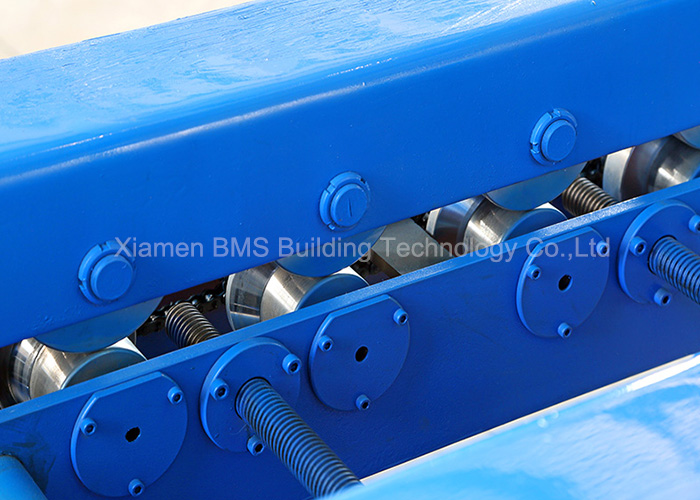

Rollers manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated

with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust)

Gear/Sprocket driving, about 6-8-step to form

Main Motor=4KW, Frequency speed control

Chain size: one inch with 18teeth

All the screw bolts with grade 8.8

Real forming speed 0-20m/min(Not include cutting time )

Hydraulic motor:3 KW; Cutting pressure: 0-14Mpa

Cutting tool material: Cr12MoV Heat treatment

The cutting power is provided by the main engine hydraulic station

PLC Control System

Control The Quantity And Cutting Length Automatically

Input The Production Data(Production Batch, pcs, Length,etc.)On The Touch Screen,

It Can Finish The Production Automatically.

Combined With: PLC, Inverter, Touch Screen, Encoder, etc

PLC: Schneider(French brand)

Inverter: Schneider(French brand)

7-Inch Color Touch Screen: Schneider(French brand)

Encoder: Omron (Japan brand)

Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor,

Thermal Relay: Schneider(French brand)

Air Switch: LG-LS(Korea brand)

Cut-to-Length Tolerance≤±1 mm

Control Voltage 24V

After-Sale Service

1. The warranty is 24 months after the client receives the machine.

Within the 24 months, we will courier the replacement parts to the client free of charge

2. We offer technical support for the entire life of our machines

3. We can send our technicians to install and train the workers in the clients' factories with

extra cost

Terms Of Trade

1. Minimum order quantity (MOQ): 1 Set

2. Port of loading: port of Xiamen

3. Type of payment: by T/T or by L/C

4. Export: to more than 50 countries and regions, including Taiwan, UK, France, Singapore,

Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc

Packing Style

The main body of the machine is naked and covered by the plastic film(to protect of dust and corrosion), loaded into the container and steadily fixed in a container suitable by steel rope and lock, suitable for long-distance transportation.
