    Galvanized PV Photovoltaic Solar Bracket Roll Forming Machine U Shape

    Galvanized PV Photovoltaic Solar Bracket Roll Forming Machine U Shape



    1. Main features of Solar Bracket Roll Forming Machine


    The solar panel mounting bracket profile rolling forming machine is designed to make solar panel mounting bracket profile in batch fully automatic. The solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in the solar photovoltaic power generation system. The general materials are aluminum alloy, carbon steel and stainless steel. The related products of the solar support system are made of carbon steel and stainless steel. The surface of the carbon steel is hot-dip galvanized, and it will not rust for 30 years when used outdoors.


    Technical Parameters of Solar Bracket Roll Forming Machine


    No

    Items

    Technical Parameters

    1


    De-coiler


    Width of Strip

    600mm;

    Thickness of Strip

    ≤2mm;

    Inner Diameter of Coil

    ф508±30 mm(according to customer’s requirements);

    Outer Diameter of Coil

    φ1500mm;Loading Weight:≤1T

    Expand Way

    Manual

    Power

    3 KW

    2

    Straightening Device

    Width of Strip

    30-100mm;

    Thickness of Strip

    2.0-2.5mm;

    Motor Power

    2.2 KW

    Speed

    About 8-12m/min

    Roller Arrangement

    7 rollers

    Arrange mode

    4-Point Independent

    3

    Roll Forming

    Forming Stations

    22 Stations

    Type of Driven

    Gear

    Forming Rack:

    The roller is adjusted by digital display.

    Station Pitch

    200mm

    Max. Feeding Width of Coil

    100mm

    Max. Thickness of Material

    2mm

    Diameter of Shafts

    Φ75mm,40Cr (quenching and tempering)

    Material of Roller

    Cr12Mov,Hardness: HRC58-60°

    Main Driven Motor

    18.5KW

    Cutting and Cutting Devices

    1 set

    Turkey Head Device (Optional)

    1set


    2. Detailed Images of Solar Bracket Roll Forming Machine

    Machine Parts
    1) Solar panel frame roll forming machine straightened device

    2) Solar panel frame roll forming machine puncher and the step into the device
    Brand: BMS Original: China
    63 Tons pre-punching device, Four punching moulds
    Puncher: China YANG LI


    3)Solar panel frame roll forming machine hydraulic post cutter
    Brand: BMS Original: China
    Made by high-quality mould steel Cr12 with heat treatment
    Cutter frame made from high quality 20mm steel plate by welding

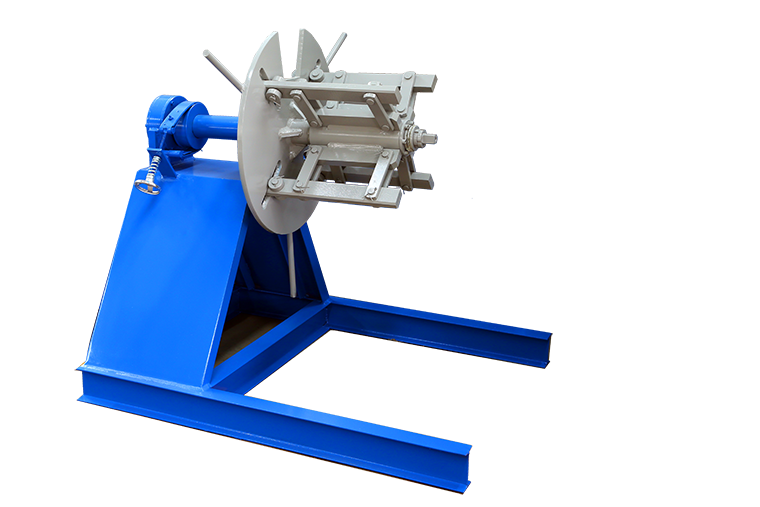

    Solar panel frame roll forming machine decoiler

    Brand: BMS Original: China
    Manual Decoiler: one set
    Un-powered, manually control steel coil inner bore shrinkage and stop
    Max. feeding width: 600mm, coil ID range 508mm±30mm
    Capacity: Max. 3Ton

    Solar panel frame roll forming machine exit rack
    Brand: BMS Original: China
    Un-powered,3 meters long, two units

    Other details of solar panel frame roll forming machine
    Suitable for material with thickness 2.0-2.5 mm
    Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined
    Motor driving, Gear chain transmission, 22 rollers to form.
    Main motor=18.5KW, Frequency speed control.

    Forming speed of approx.8-12m/min

    PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
    Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
    Combined with: PLC, Inverter, TouchScreen, Encoder, etc
    Cut-to-length tolerance≤±2 mm
    Control Voltage 24V
    User's manual in English

    After-sale service of solar panel frame roll forming machine

    1. The warranty of solar panel frame roll forming machine
    is one year after the client receives the machine.
    Within one year, we will courier the replacement parts to the client free of charge.
    2. We offer technical support for the entire life of our machines.
    3. We can send our technicians to install and train the workers in the clients' factories at extra cost.

    Terms of trade

    1. Minimum order quantity (MOQ): 1 piece
    2. Delivery time: about 45 workdays
    3. Port of loading: port of Xiamen
    4. Type of payment: by T/T or by L/C
    5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,
    Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
