    High-Performance GCr15 Roller material Pallet Rack Roll Forming Machine of 45#steel

    Ask Lasest Price
    Brand Name : BMS
    Model Number : Shelf
    Certification : SGS,CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50set/month
    Delivery Time : 50days
    • Product Details
    • Company Profile

    High-Performance GCr15 Roller material Pallet Rack Roll Forming Machine of 45#steel

    High-Performance GCr15 Roller material Pallet Rack Roll Forming Machine of 45#steel


    Pallet Rack Roll Forming Machine Description


    Shelf Bracket Roll Forming Machine produces rack shelves for supermarkets, warehouses, small markets, racks, cooling rooms.

    Brand Forming Machinery Co., Ltd. Owns a set of mature shelf production technology, such as Shelf Bottom Beam, Shelf Support, Shelf Rack, Pallet Rack, Shelf Hanging Plate, Shelf Column, Shelf Diagonal Keel, Pallet Rack Step Beam, etc.

    This machine is used to produce a shelf-mounted board production line


    Working flow: Decoiler ---- Levelling---Punching-- Roll Forming ---- Cutting ---- Production support table—PLC control Cabinet


    Servo Feeding Device

    De-coiler--------------------------------------------1set

    Levelling Device----------------------------------1set

    Hydraulic punching device---------------------1set

    Hydraulic pump station--------------------------1set

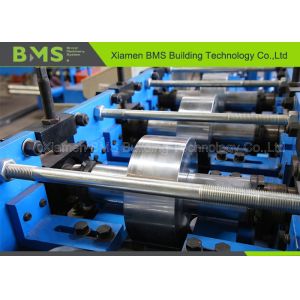

    Roll Forming Mill

    Feeding Guide-------------------------------------1set

    PLC Control cabinet -----------------------------1set

    Production support table------------------------1set


    1. Width of material: According to the final confirmed drawing
    2. Forming steps: About 12 steps
    3. The material of rollers: GCr15 steel, precision-machined, high-frequency quenching HRC58-62, a diameter of rollers: Φ65 mm
    4. The material of the main shaft: 45# high-quality steel, the diameter of shaft: Φ65 mm
    5. Chains’ material: 45# steel, high-frequency quenching

    6. Cutting: Hydraulic cutting after forming; Cutting material: Cr12Mov; quenching HRC58-62
    7. Electronic control: PLC control Cabinet
    8. Drive mode: Chain drive
