    High-Quality Shelf Pillar Supermarket Cold Roll forming Machines With Leveling

    Ask Lasest Price
    Brand Name : BMS
    Model Number : Shelf Pillar Supermarket
    Certification : SGS,CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30set/month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    High-Quality Shelf Pillar Supermarket Cold Roll forming Machines With Leveling

    High-Quality Shelf Pillar Supermarket Cold Roll forming Machines With Leveling


    Machine Description


    1. Applicable Materials:

    1) Coil Thickness: 1.4-2.0mm

    2)Yield Strength: G340-G550
    2) Raw Material: GI/CRC

    2. The equipment including

    5T Manual decoiler:1 set

    Leveling and punching machine: 1 set

    Servo feeding machine: 1 set

    Roll forming machine: 1 set
    PLC control system: 1 set

    Exit rack:3 set


    Detailed Description


    5T Manual De-coilerHydraulic optional
    Feeding and leveling machineWith the servo system
    Main roll formingWith an automatic control system

    5T Manual De-coiler

    Unpowered
    Capacity weight: 5Tons

    Coiling inner diameter: 508±30mm
    Working pressure: 12Mpa
    Coil outer diameter: 1500mm


    Feeding and leveling machine

    Servo motor:2.2KW(Yaskawa Japan)

    After unwinding, the coil enters the unit guide roller (left and right adjustable)

    Feed roller:material 45 # steel,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
    Leveling roller are on top three shafts and four shafts in the following, surface quenching


    Using hydraulic punching
    Mould material: Cr12Mov, Quenching to 58-62°
    Punching pressure: 120 tons

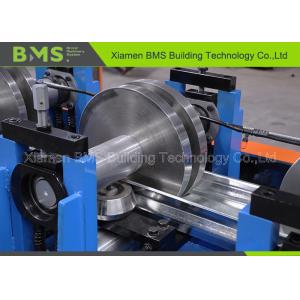

    Main roll forming

    Main power: 15KW

    Structure: Arch frame

    Drive: gearbox drive

    Shaft Diameter: ¢ 75mm,

    Material 45 # quenching and tempering

    Roller material: GCR15 quenched to 58°-62°, with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust)

    Forming Stations: about 18 stations

    Forming speed:8-16m / min

    Computer PLC control, operation panel with touch screen display


    Packing & Delivery

    Payment terms and after-sales service:

    1) FOB Xiamen

    2) Payment: 30% T/T deposit, and pay the balance before shipping.

    3) Delivery time: 60 working days.


    Installation and training:

    1. If the buyer visits our factory and inspects the machine, we will teach you how to install and use the machine and train your workers/technicians face to face.

    2. Without access, we will send you a user manual or video to teach you how to install and operate.

    3. Installation cost:

    1)Incorrect operation& maintaining, the machine is guaranteed for 24months from the date of the successful installation and commissioning of the types of equipment at the Buyer’s Installation site. (the spare parts stock are available for IMMDEIATELY SERVICE)

    2)If necessary, we will dispatch a technician to the factory abroad to install regulate the machine with USD100/day. The buyer should assist our technician to get the visa and should pay for the air around the ticket and the local accommodation.


    If you have any other questions about our machine, please feel free to contact me. Thanks
