    Double Layer Roofing Roll Forming Machine / Production Line For Two Profile

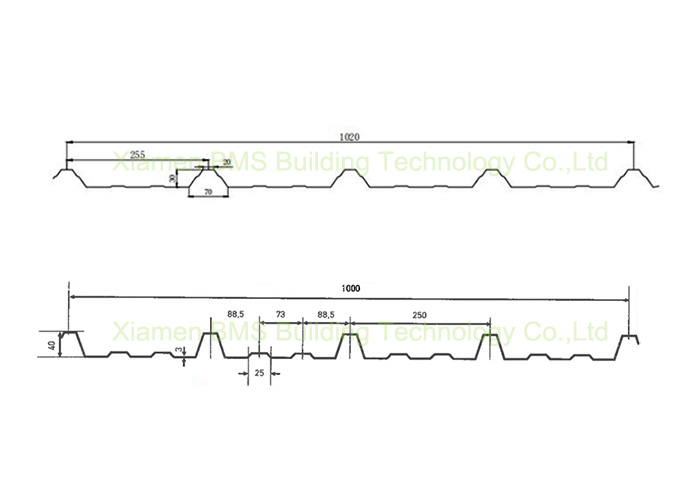

    Double Layer Roofing Roll Forming Machine Roofing Production Line for Two Profile


    Main Machine

    The machine dimension(L*W*H):About 8500mm*1500mm*1800mm

    body frame made from H400 type steel by welding

    Sidewall thickness: Q235 t18mm

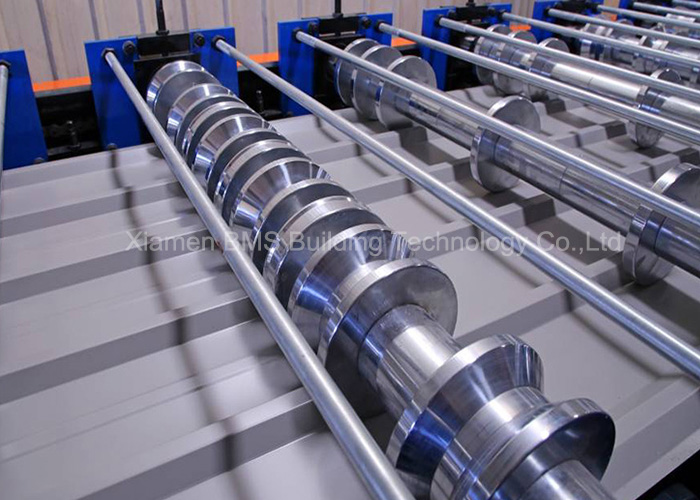

    Rollers manufactured from 45# Steel, CNC lathes, Heat Treatment, hard Chrome Coated, with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust)

    Shafts Diameter=ф75mm, precision machined

    Gear/Sprocket driving,about 18-step(Upper Layer)/18-step(Down Layer) to form

    Main Motor=5.5KW, Frequency speed control

    Chain size: one inch with 18 teeth

    All the screw bolts with grade 8.8

    Real forming speed 12-16m/min(Not include cutting time)


    Post Hydraulic Cutting Device

    Post to cut, stop to cutting, Three pieces type of cutting blade design, no blanking

    Hydraulic motor:3 KW; Cutting pressure: 0-16Mpa

    Cutting tool material: Cr12MoV

    Heat treatment to HRC58-62 degree

    The cutting power is provided by the main engine hydraulic station
