Thickness 0 , 3 - 0 , 6mm Yield Strength 235 - 550Mpa Roof Panel Roll Forming Machine

Profile Drawing

General Parameter

Material

Work Flow

Decoiler→Manual Pre-cutter→Guide Feeding→Rolling Forming System →Hydraulic Post Cutter→Exit Rack

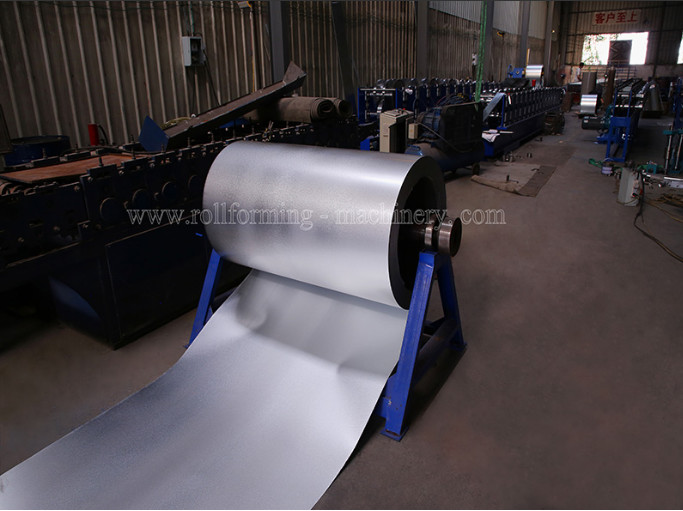

Decoiler

Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop

Max feeding width: 1000mm, coil ID range 508mm±30mm,Max capacity: 5T

Main Machine

With manual pre-cutter for easy operation and save material.

Body frame made from H450 type steel by welding.Side wall thickness:Q235 t18mm.

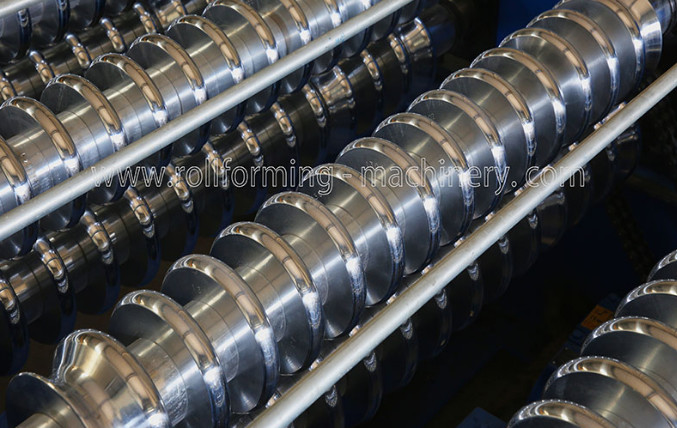

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).

Main shaft diameter=φ80/95mm, precision machined Motor driving, Gear chain transmission, 18 steps to form. Main motor=7.5KW, Frequency speed control.

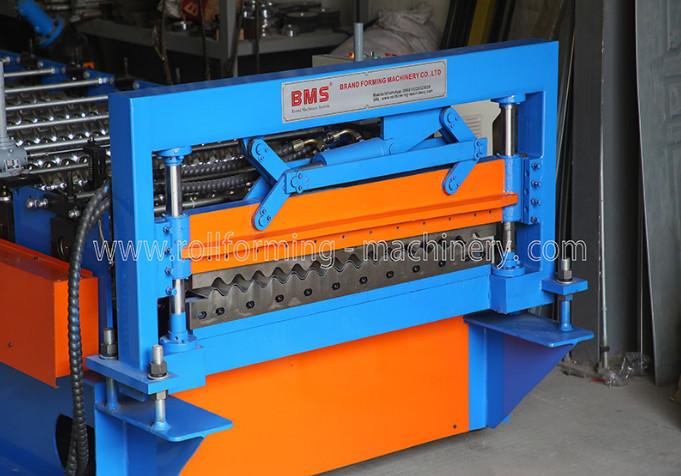

Post to cut,stop to cutting.Two pieces type of cutting blade desigh,no blanking.

Made by high quality mold steel Cr12MoV(=SKD11,with at least one million times of cutting lives),with heat treatment,HRC58-62 degree.

Hydraulic motor: 3KW, Hydraulic pressure range: 0-16Mpa,Cutting time:2s.

The cutting power is provided by the main engine hydraulic station.

PLC Control System
