    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX25-205-1025
    Certification : CE
    Price : USD 30000/set
    Payment Terms : L/C, T/T
    Supply Ability : 30set/month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine

    0 , 3 - 0 , 8mm Yield Strength Is 245 - 550Mpa Roof Panel Roll Forming Machine



    Parameter


    ItemParameters
    1TypeYX25-205-1025
    2Thickness0.3-0.8mm
    3Forming Speed18-20 m/min
    4Forming station20 steps
    5Main Motor Power7.5 KW
    6Hydraulic Power2.2 KW
    7Shaftφ75mm
    8Weightabout 8T



    Profile drawing

    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine


    Main features

    The addvantages of rool panel machine are as follows:
    1.Able to produce two different profiles.
    2.Save space,more convenient.
    3.Easy operation,low mainenance cost.
    4.Stable and durable.


    Decoiler

    Manual decoiler: one set.Manual control steel coil inner bore shrinkage and stop
    Max feeding width: 1250mm, coil ID range 470mm+30mm,Max capacity: 8T
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine
    With 6 ton hydraulic decoiler for option
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming MachinePLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine

    Pre-cutter device

    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine

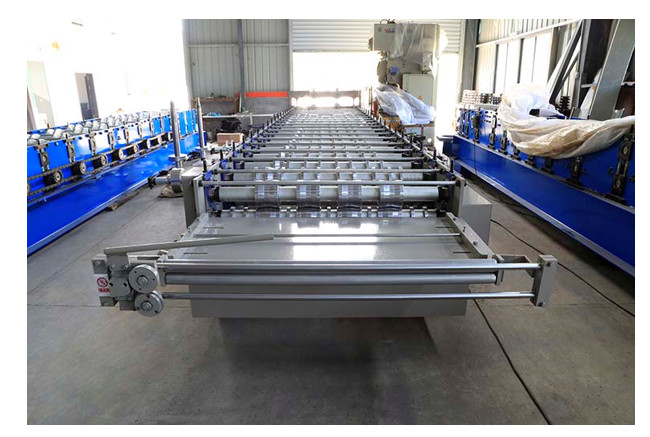

    Main Machine

    Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with black treatment or Hard-Chrome Coating for options Body frame made from 400# H type steel by welding.Main shaft diameter=φ75mm, precision machined Motor driving, Gear chain transmission, 20 steps to form. Main motor=7.5KW, Frequency speed control.
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine
    Post cutter made by high quality mold steel Cr12,Heat treatment to HRC 58-62 degree,Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa Cutter frame made from high quality 20mm steel pl.
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine

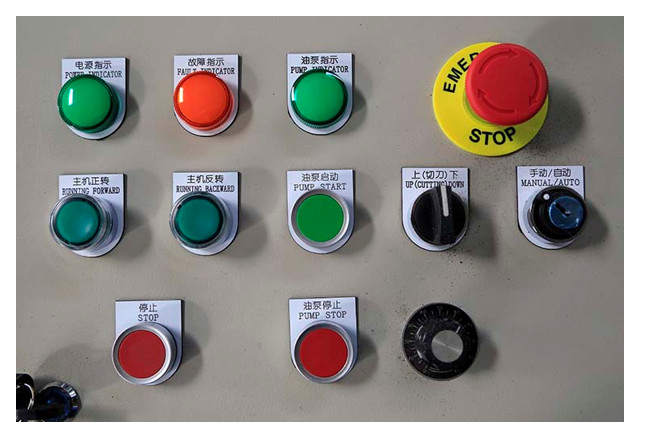

    PLC Control System

    Easy to operation.
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming MachinePLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine
    Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
    It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
    Cut-to-length tolerance≤±2mm
    Control Voltage 24V
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine
    Packing Style

    Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
    and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
    PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine
    After-sale service of roof panel roll forming machine
    1. The warranty of roof panel roll forming machine is 24 months after the client receives the machine Within 24 months, we will courier the replacement parts to the client free of charg.
    2. We offer technical support for the entire life of our machine .
    3. We can send our technicians to install and train the workers in the clients factories with extra cost.

    Terms of trade

    1. Minimum order quantity (MoQ): 1
    2. Delivery time: about 45 workdays
    3. Port of loading: port of Xiamen
    4. Type of payment: by T/T or by L/C
    5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
