Shaft 75mm Thickness 0.3 - 0.8 mm Metal Roofing Panel Roll Forming Machine

1. Product parameter

2. Profile Drawing

3. The advantages of roof panel machine are as follows:

1. Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material no waste
3. Easy operation, low maintenance cost
4. Able to deal with stainless material

4. Detailed Images of metal roofing panel forming machine

Machine parts

1) Metal roofing panel machine pre-cutter
Brand: BMS Original: China
With feeding material guide, avoid wasting material

2) YX22-1070 roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options
Body frame made from 350# H type steel by welding

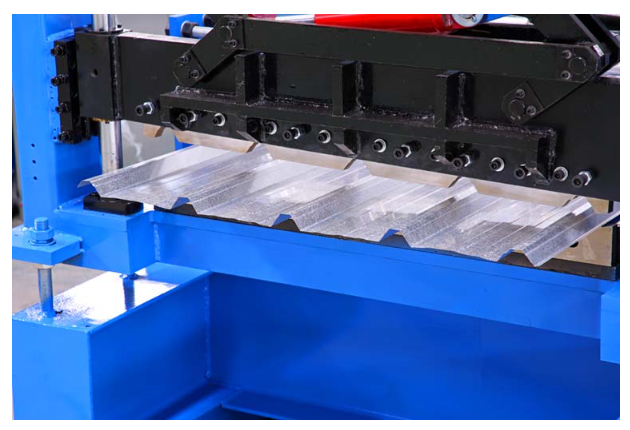

3)YX221070 roof panel machine post cutter

Made by high quality mold steel Cr12 with heat treatment Cutter frame made from high quality 20mm steel plate by welding

hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

4)YX22-1070 roof panel machine control cabinet

5) The Overlap Effect of Product

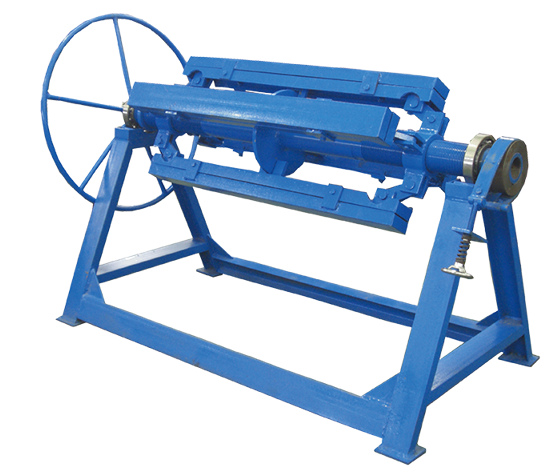

6) YX22-1070 roof panel Manual decoiler

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508mm+30mm Capacity: 5-9 Ton

With 7 tons hydraulic decoiler for option

7) YX22-1070 roof panel machine exit rack

Un-powered, three units

5. Other details of YX22-1070 roof panel roll forming machine

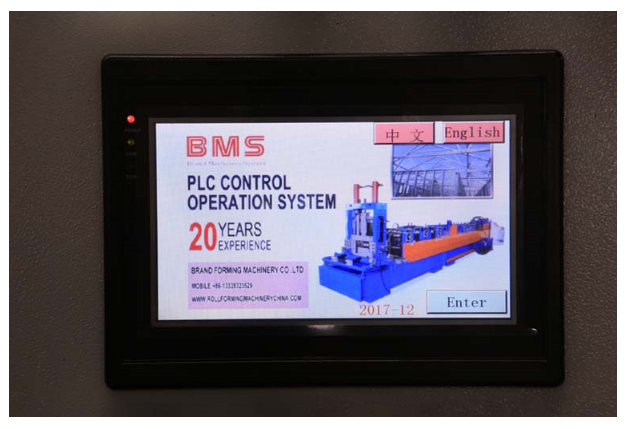

PLC Control System

Touch screen brand: German Schneider Electric/ Taiwan WEINVIEW

Inverter brand. Finland VOCAN/Taiwan DELTAALPHA,

Encoder brand: Japan Koyo/OMRON

Combined with: Plc. Inverter. Touch Screen. Encoder. etc

ut-to-lengthtolerances+2 mm Control Voltage 24V

User's manual in English

After-sale service of roof panel roll forming machine
1. The warranty of roof panel roll forming machine
is two year after the client receives the machin
Within one year, we will courier the replacement parts to the client free of charg
2. We offer technical support for the entire life of our machine
3. We can send our technicians to install and train the workers in the clients factories with extra cost

Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiame
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel Dubai, Russia, India, Taiwan, Singapore,
Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
